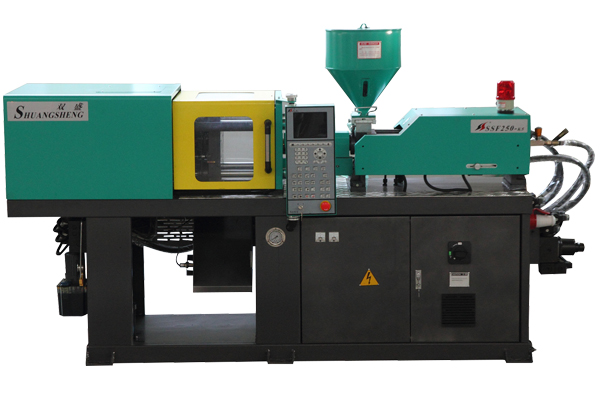

ChipMaster 25Ton Laboratory Color Chip Inj. Molding Machines





SS 250 ChipMaster
•25 Ton Clamp Force
•Hydraulic/Toggle Clamp
•Simple Basic Operation
•Touch screen Control
•27g shot weight
•Full Plasticizing Screw (Options avail.)
•Low Power Consumption
•Color Chip Tooling Available
Chipmaster 250 Series




Quote Request

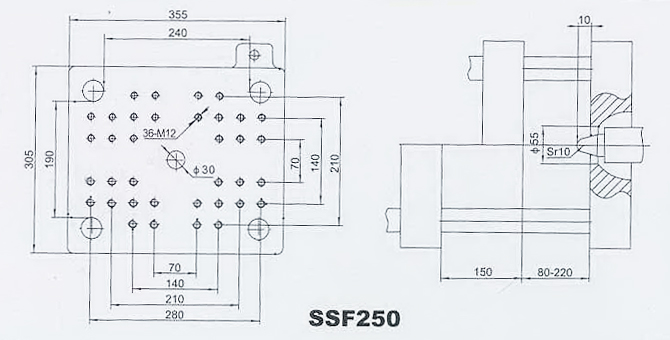

Platen Layout SS250

Table of Technical Parameters:

TYPE

STANDARD TYPE

SPECIFICATION

SSF250-K5

ITEM

A

B

INJECTIONIL

Screw Diameter

mm

22

25

Screw L/D Ratio

L/D

17.7

15.5

Shot Volume(Theoretical)

Cm3

30

38

Injection Weight(PS)

g

27

34

Oz

0.9

1.2

Plasticizing Capacity

g/s

2.6

3.3

Injection Rate

g/s

25

32

Injection Pressure

M pa

185

143

Screw Speed

rpm

165

CLAMPINGUNIT

Clamp Force

KN

250

Open Stroke

mm

150

Space Between Tie Bars(W×H)

mm

240×190

Max. Mould Height

mm

220

Min. Mould Height

mm

80

Ejector Stroke

mm

40

Ejector Force

KN

13

Ejector Number

PC

1

Mould Align Diameter

mm

55

OTHERS

Max. Pump Pressure

M pa

14

Pump Motor Power

KW

3

Heating Power

KW

2.5

Machine Dimension(L×W×H)

m

2.75×0.86×1.35

Machine Weight

t

1

Oil Tank Capacity

L

85

Notes:(1)Theoretical injection volume=screw diameter×screw stroke;
         (2)Actual injection weight is 91% of the theoretical volume;
         (3)All the data is PS values.
Remark: Above-mentioned technical parameters are all theoretical values in 50HZ operation state. The technical parameters are subject to change for technical improvement without notice.



Table of Product Configuration:

Types SSF250-K5
Main Components
Electric motor Ningbo
Vane pump Taiwan high-tech
Direction valve Taiwan Yuken
Proportioning valve Taiwan Yuken
Five-star motor Gerotor motor (Zhengjiang Hydraulic components )
Electronic ruler America France(2pcs)
Contact device exchanges Snaid France
Lubrication Computer lubricate automatically
Airproof piece Valque Japan      DZ Taiwan
Stroke switch Omron Japan






Call (810) 516-1700 for Pricing

Covering Michigan, Ohio, Ind, Ill, Canada for LabTech Engineering Co.
