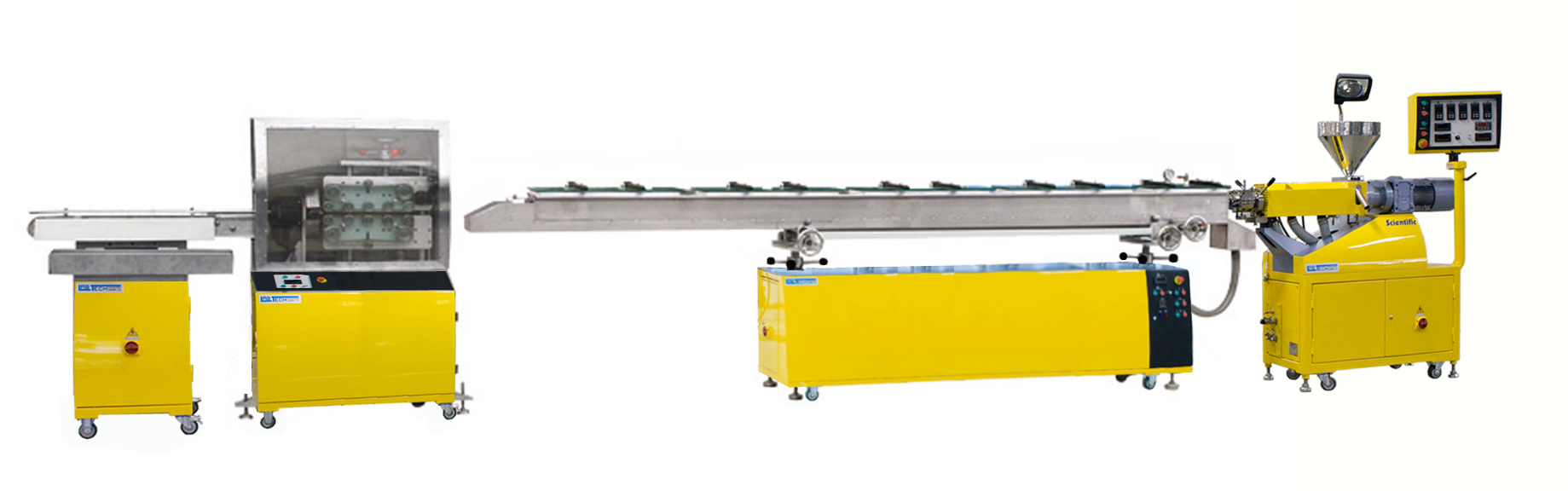

Laboratory Medical Tubing Extrusion Lines

The Labtech Engineering Medical Tubing Lines include high quality extruders available in sizes of 12.5mm, 20mm, 25mm, 30mm and 45mm.

Laboratory and production lines feature cross head dies, vacuum sizing tanks, optional Zumbach or customer preference gauging systems, caterpillar belt pullers, and traverse winders for producing high quality lab run tubing, and exceptional production lines for smaller size tubing.

Request a quote on this line - Click Here!

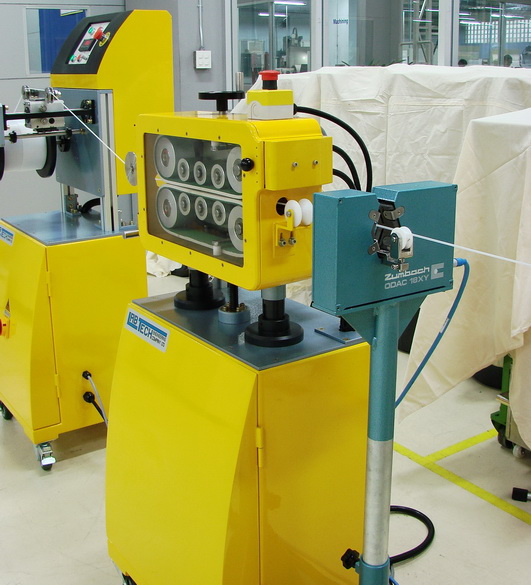

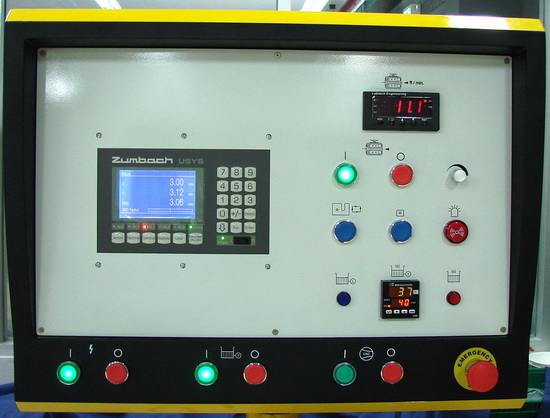

Integrated Tubing Gauge Control with belt puller and vacuum tank controls

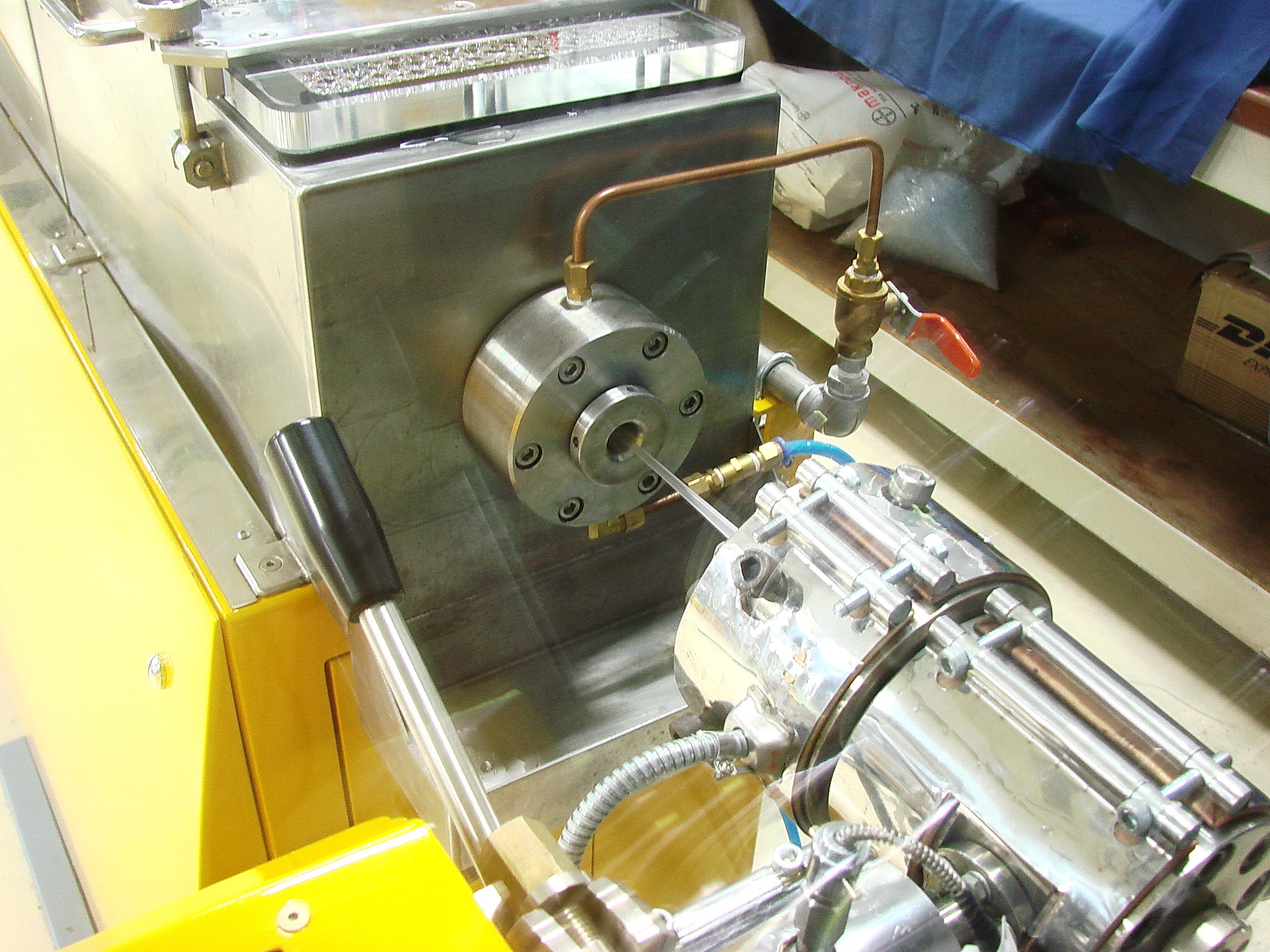

Cross Head Die to Vacuum Sizer

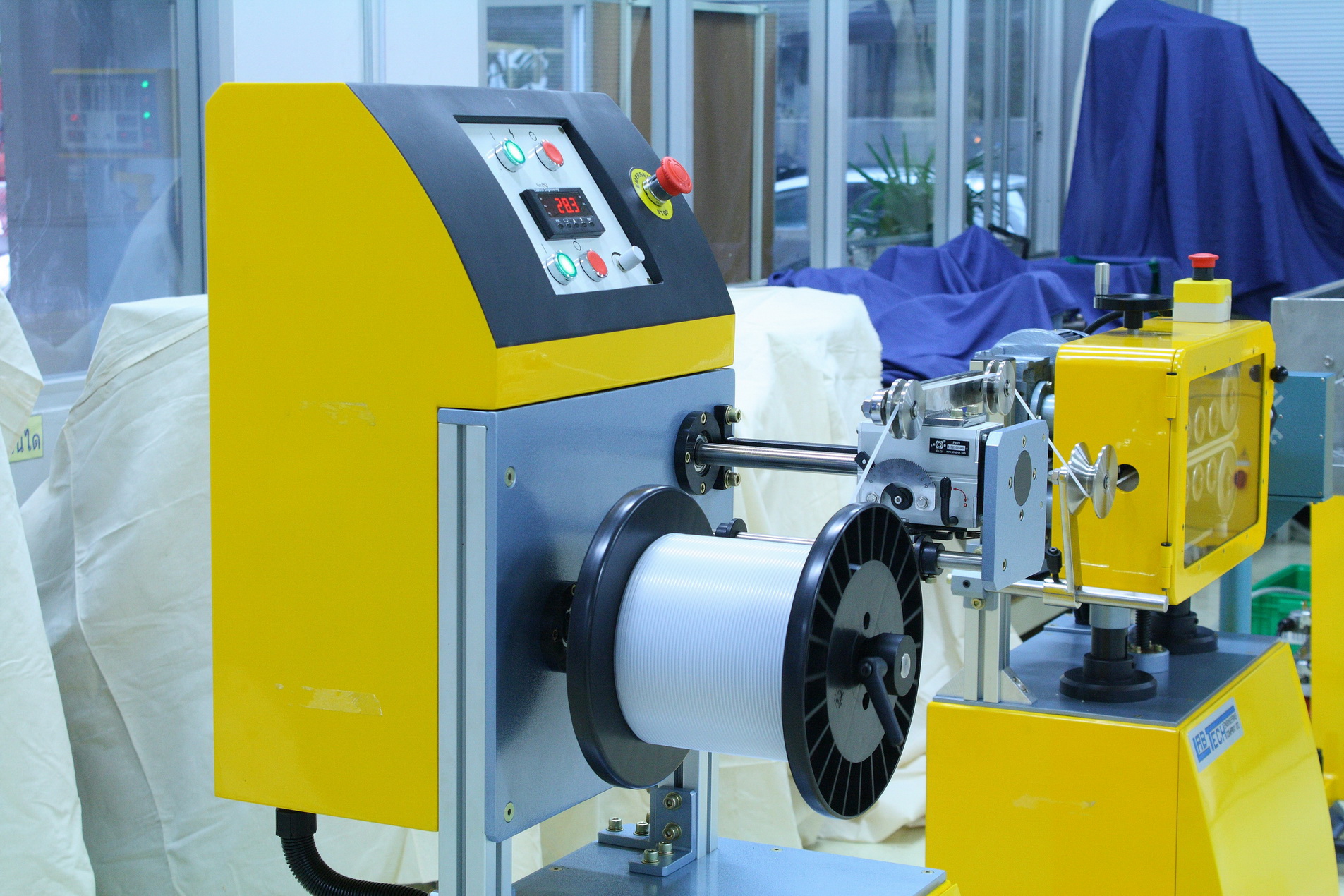

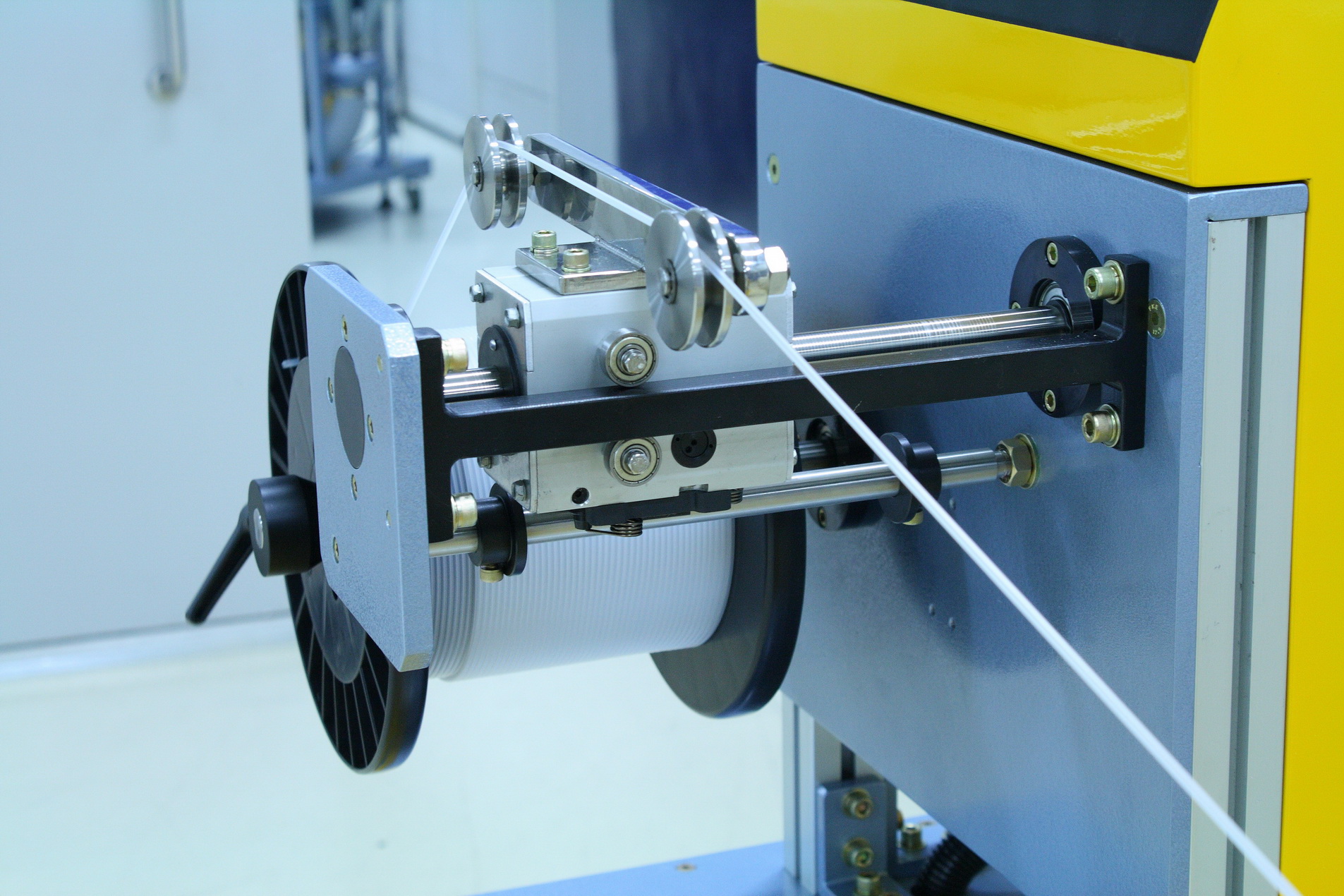

Traversing Station Winding Reel with speed and traverse control

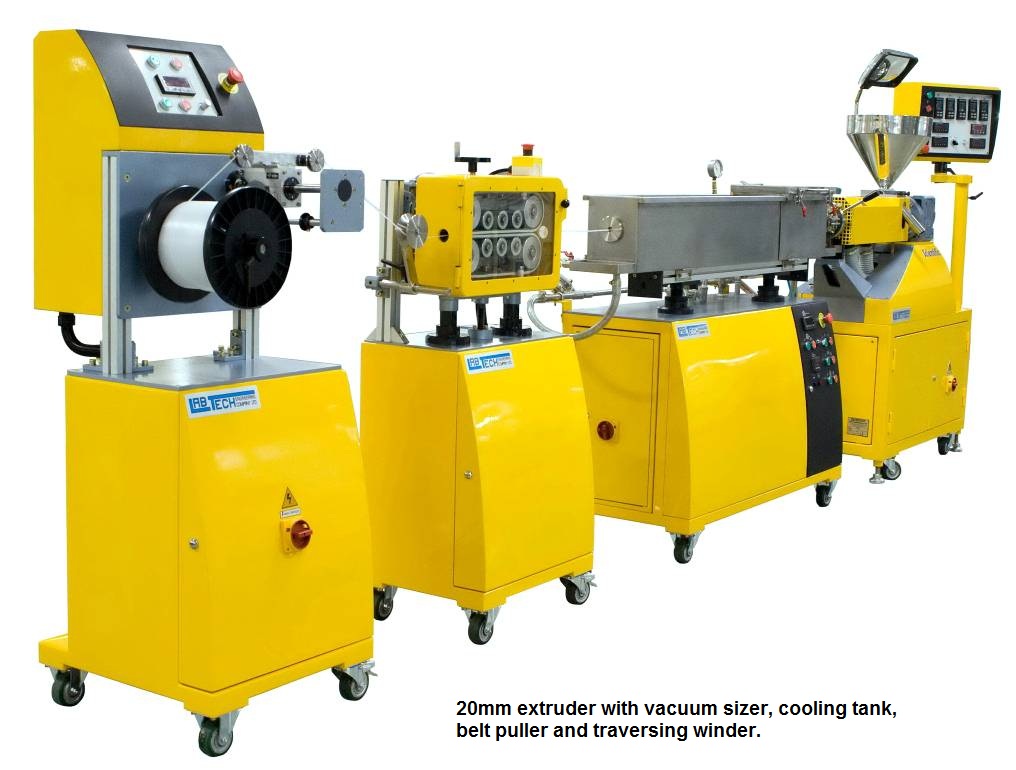

25mm Flexible PVC medical tubing line with servo drive puller/cutter shown without Zumbach Gauge or Air Pressure Control

Typical Mixing Screw for Single Screw Extruders, 30:1, Maddock Mixer and Pineapple Mixer




Chemically enabled Plastic Purging Compounds like XPD8® are heat activated. To achieve optimum results, you must raise your heats in the areas that you know problems are likely to occur. Such as:
Areas of Negative Flow
Sharp Angles in The Flow Path
Blow Molding Heads

However, in areas that you feel you don't have a problem, do not deviate from normal heat profiles recommended

The Feeder Zone in Injection Molders
Straight Screw and Barrel in Extrusion Systems

By following these guidelines, you will be assured that the chemical activity of the Purging Compound will be used where it is needed and not prematurely expended and wasted in areas where it is not necessary.

RBM suggests that every time you have a prolonged shutdown of your equipment to employ the amazing abilities of XPD8® High Performance Plastic Purging Compounds to give you worry free restarts time after time.

XPD8® Compounds will not freeze up your screws, will never plug up a die head, and will guarantee an easy start up after a prolonged shutdown without any problems at all.

Note: Milabtech LLC is providing this information as a service, and is not responsible for results. If you have any questions, contact the manufacturer below.


Click this link for a video on purging
