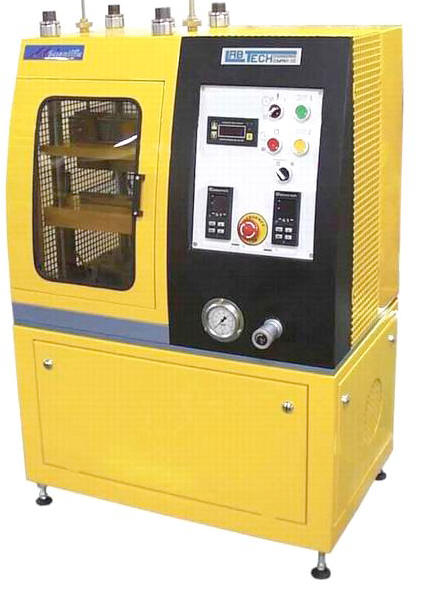

Hydraulic laboratory presses from 20 to 80 metric tons platen pressure.
A double set of heating and cooling platens are standard. Available with
a fully automatic platen insert cooling system as well as many platen
configurations and control options.
The Laboratory press, when used in conjunction with our Roll Mill, offers the custom compounder the fastest, most economical method of color sampling for compounds.
This is a very low cost, quicker method than Injection Molding Color Chips, or Extruding samples.
ASTM Presses Available, ask for quote
Click Here to See VIDEO of Line running at the show

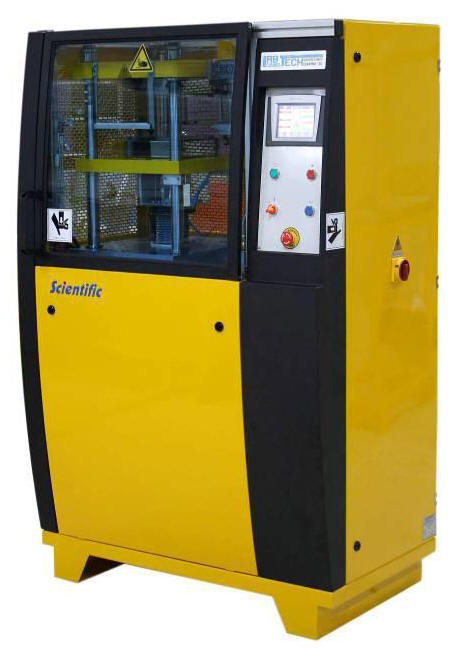

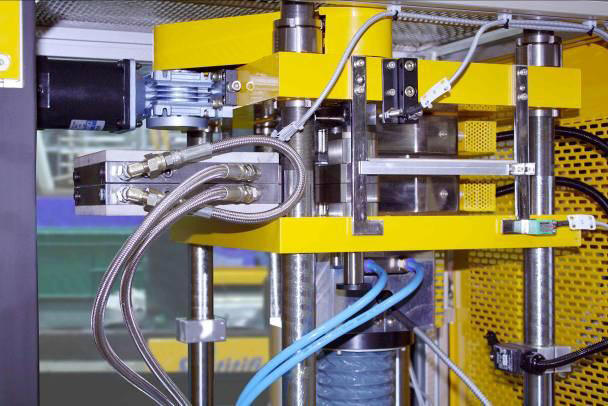

This laboratory press has no hydraulics and the up stroke pressure is achieved by a ball screw which is driven by a AC gear motor. The press is the first fully electric version in the world which featuring electric driven insert platens as well a computerized touch screen controls with easy to understand graphics. The press has a max pressure of 20 MT and platen sizes of 200 x 200 mm. The mould is here placed on a platform in between the hot pressing platens and the fully automatic press cycle starts with the hot platens clamping the mold and during the hot pressing cycle, the mould can be set to vent by opening and closing the press for a short period. When the hot press cycle is completed, the platens opens and the cooling platens are inserted in between the hot platens and the mold. The press is then closed and the cooling platens are now clamping the mold. When the cooling cycle is completed, the press will open and the mould is ready to be removed from the platform. The pressure is sensed by a transducer on the piston and it is set at and shown at any required value up to maximum of 200 kN.
Request a quote on this press - Click Here!

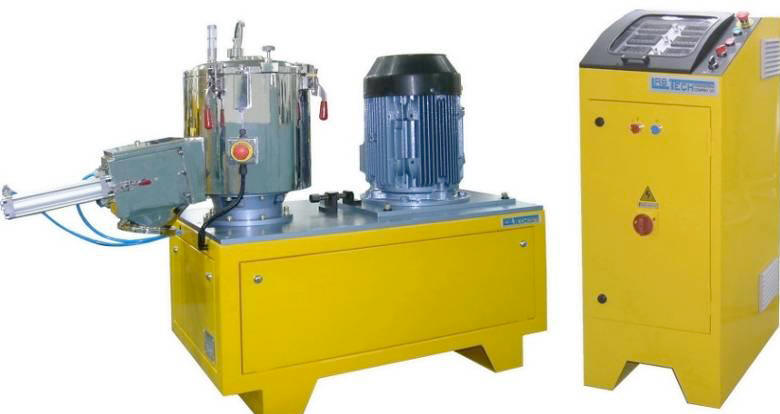

25 liter high speed mixer.
This machine is equipped with
variable impeller speed, adjustable
from 500 to 2500 RPM. The mixer
has a separate control panel with
easy to use digital instruments to set
automatic mixing cycles. The mixer
has a 4 level impeller, swing open top
lid with adjustable deflector and a
high power drive of 11 kW
Click Here to See VIDEO of
Line at the show
Click Here for More Mixer Information
