European Laboratory Polymer Processing Equipment Quality with Excellent Value Pricing



26mm Extruder Screw Segment Selection Listing



Twin-start discharge screw Pitch 0.5D

Length 1.5 D

LTE26-TSDS-P0.5D-L1.5D





Twin-start discharge screw Pitch 0.5D

Length 1D



LTE26-TSDS-P0.5D-L1D





Single-start discharge screw Pitch 0.5D

Length 1.5 D



LTE26-TSDS-P0.5D-L1.5D





Twin-start conveying screw Pitch 2D

Length 2D



LTE26-TSCS-P2D-L2D





Twin-start conveying screw (reverse flight) Pitch 2D Length 1D



LTE26-TSCS(R)-P1D-L1D



Twin-start conveying screw Pitch 1D

Length 1 D

LTE26-TSCS-P0.5D-L1D





Twin-start conveying screw

Pitch 1D Length 0.5D



LTE26-TSCS-P0.5D-L0.5D





Twin-start conveying screw

(reverse flight) Pitch 1D

Length 0.5D



LTE26-TSCS(R)-P0.5D-L0.5D





Individual kneading disc 0 angle

LTE26-IKD-0-L0.25D



Individual kneading disc 90 angle

LTE26-IKD-90-L0.25D



Kneading block 5 discs 90 off-set angle Length 1.25D

(LTE26-KB-90-5-L1.25D)



Kneading block 4 discs 30 off-set angle Length 1D

(LTE26-KB-30-4-L1D)



Kneading block 4 discs 60 off-set angle Length 1D

(LTE26-KB-60-4-L1D)



Kneading block 6 discs 30 off-set angle Length 0.75D

(LTE26-KB-30-4-L0.75D)



Kneading block 5 discs 30 off-set angle Length 0.625D

(LTE26-KB-30-5-L0.625D)



Kneading block 6 discs 60 off-set angle Length 0.75D

(LTE26-KB-60-6-L0.75D)



Kneading block 4 discs 60 off-set angle (reverse angle) Length 0.5D

(LTE26-KB-60(R)-4-L0.5D)



Kneading block 4 discs 90 off-set angle Length 0.5D

(LTE26-KB-90-4-L0.5D)

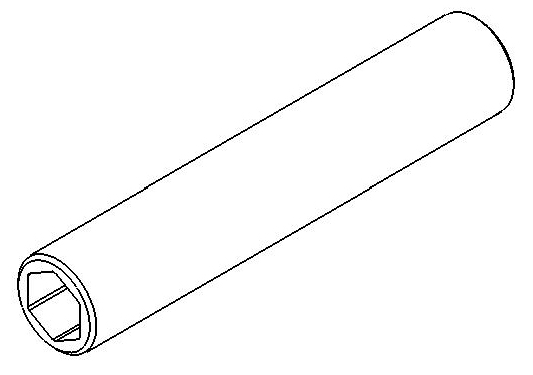

Screw Shaft Coupling,

2 units per set

LTE26-SC

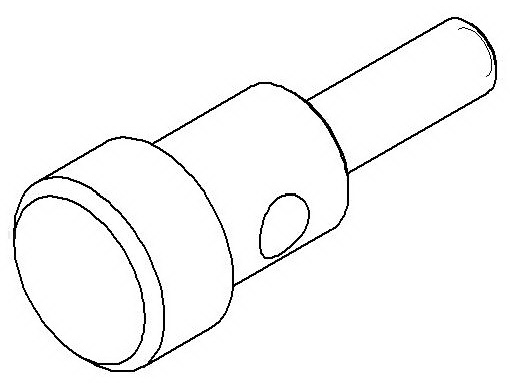

Screw tip locking screw

2 units per set

LTE26-LS
