  Labtech Twin Screw Extruders & Pelletizers

Click to see 16mm TS pelletizing line running at K2019home

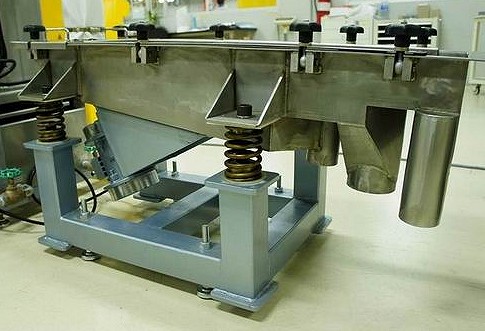

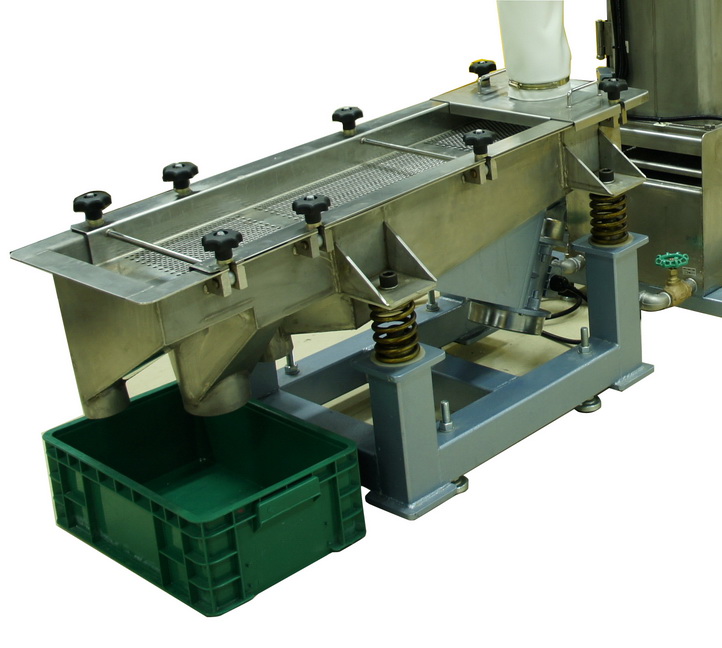

Mini Classifier - Just 1 meter long



(6) 25mm pelletizing lines for custom short run masterbatch production




For More information on the 12mm Twin Screw Extruder and Down Stream Options Click here



The NEW! - MAXI COMPOUNDER, 1200 RPM HIGH OUTPUT (UP TO 250#/HR) - PERFECT FOR SHORT RUN MASTERBATCH PRODUCTION

The new 26mm MAXI COMPOUNDER is equipped with a 22 kW AC Motor drive and a newly designed gear box comprising of additional shaft supporting gears and a direct driven gear pump for closed loop oil cooling system. The max screw RPM with the Maxi Compounder is 1200 RPM as opposed to our standard versions where the max RPM is 800.

Output is 30% higher than the standard 26mm Twin Screw Extruder.

Click here to see VIDEO of line running



Request a quote on this line - Click Here!





With barrel lengths of up to 48 L/D and screw RPM of up to 1200



26MM Twin Screw Extruder

The Scientific 26 mm co-rotating twin screw extruders is made with a complete modular build up of the clam shell barrel, where each barrel section have a length of 4 D or 104 mm. Four standard lengths are available with 32, 40, 44 and 48 L/D and with standard High Power version with 15 kW motor drive and a max screw RPM of 800.


Modular co-rotating twin screw extruders have clam-shell barrels and our unique super hard tool steel barrel inserts. Fully closed barrels are an option. Machines are available with 20 and 26 mm screw diameters and L/D ratios of 32:1 and 40:1.

Click here to see VIDEO of line running



Request a quote on this line - Click Here!

26mm twin screw extruder with water bath and standard pelletizer, equipped with agitated screw feeder and analog controls.

26mm Twin Screw Specs and Layout Drawing

26mm Screw Segments Listing







16mm Twin Screw Extruder

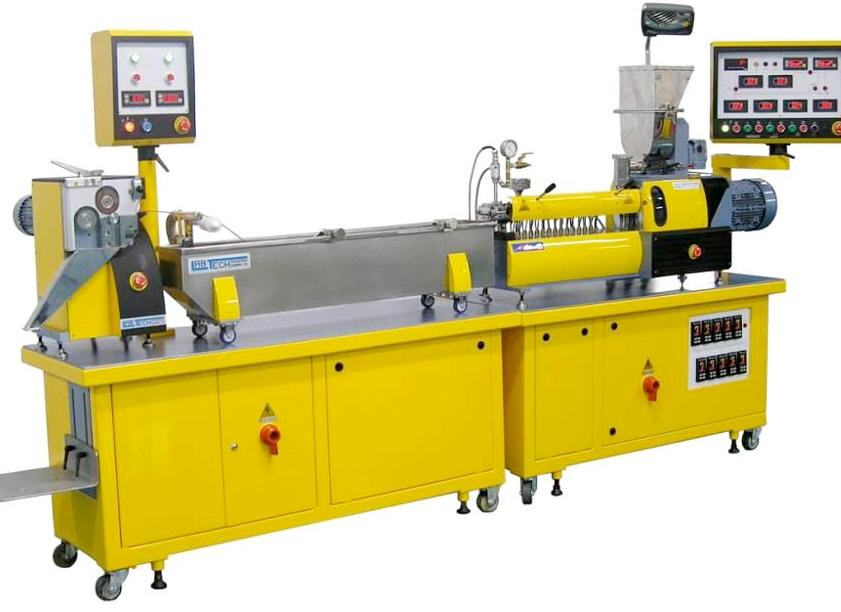

16mm twin screw extruder with water bath and standard pelletizer, equipped with agitated screw feeder and analog controls.

Click here to see VIDEO of line running at the show.

Request a quote on this line - Click Here!

16mm Twin Screw Specs and Layout Drawing

Optional Twin Screw Extruder Side Feeders

26mm Twin Screw Extruder with (2) optional side two stage agitated metering feeders with lower extruder screw side feeders and main metering feeder for compounding.  Loss in Weight Gravimetric feeders are also available.

Request a quote on this line - Click Here!
