Combi Twin Screw PVC Twin Screw 12-26 mm Twin Screw 36mm
For More information on the 12mm Twin Screw Extruder and Down Stream Options Click here
The new 26mm MAXI COMPOUNDER is equipped with a 22 kW AC Motor drive and a newly designed gear box comprising of additional shaft supporting gears and a direct driven gear pump for closed loop oil cooling system. The max screw RPM with the Maxi Compounder is 1200 RPM as opposed to our standard versions where the max RPM is 800.
Output is 30% higher than the standard 26mm Twin Screw Extruder.
Click here to see
VIDEO of line running
Request a quote on this line - Click Here!
With barrel lengths of up to 48 L/D and screw RPM of up to 1200
26MM Twin Screw Extruder

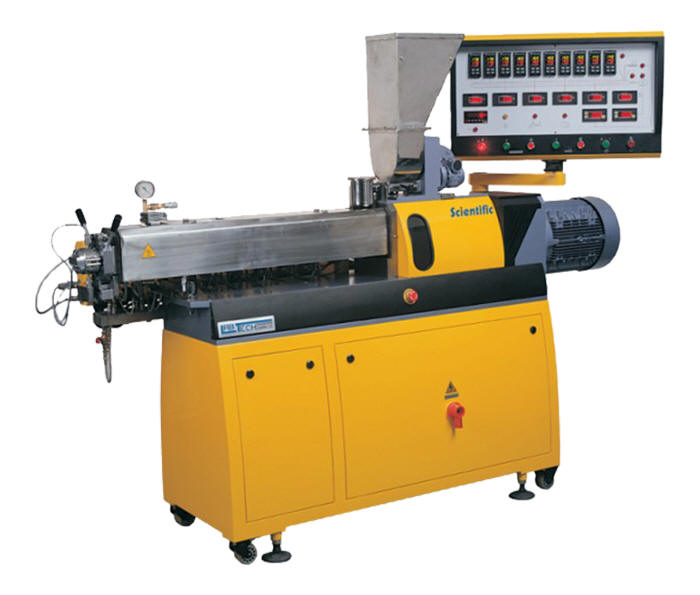

The Scientific 26 mm co-rotating twin screw extruders is made with a complete modular build up of the clam shell barrel, where each barrel section have a length of 4 D or 104 mm. Four standard lengths are available with 32, 40, 44 and 48 L/D and with standard High Power version with 15 kW motor drive and a max screw RPM of 800.

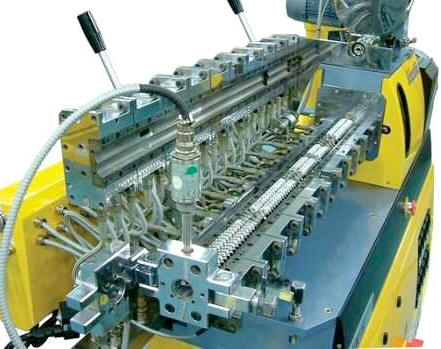

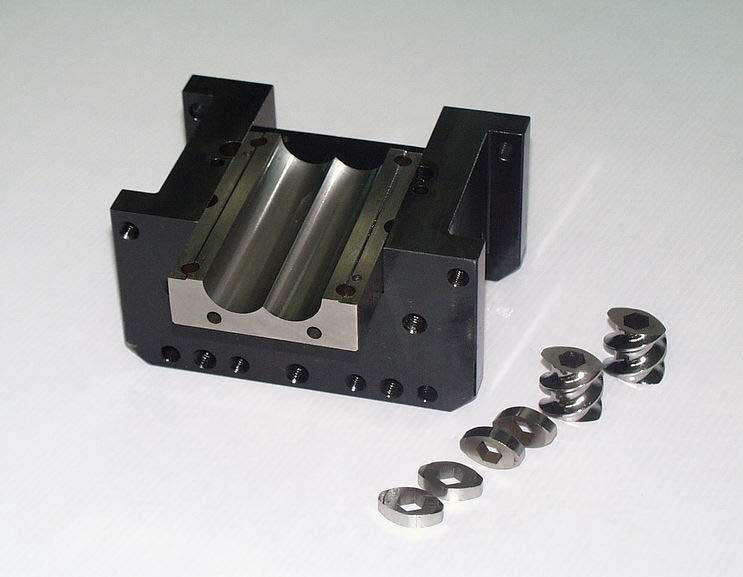

Modular co-rotating twin screw extruders have clam-shell barrels and
our unique super hard tool steel barrel inserts. Fully closed barrels
are an option. Machines are available with 20 and 26 mm screw diameters
and L/D ratios of 32:1 and 40:1.
Click here to see VIDEO of line running
Request a quote on this line - Click Here!

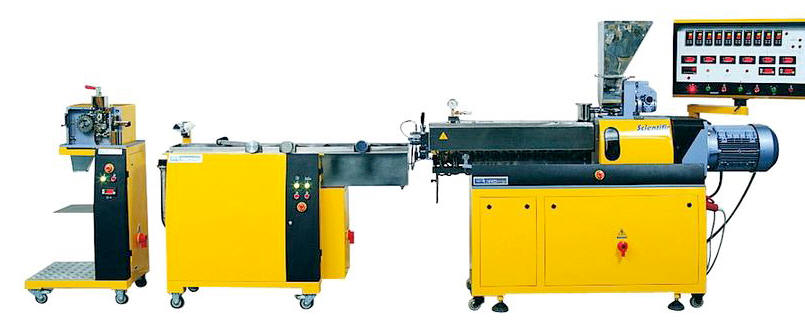

26mm twin screw extruder with water bath and standard pelletizer, equipped with agitated screw feeder and analog controls.

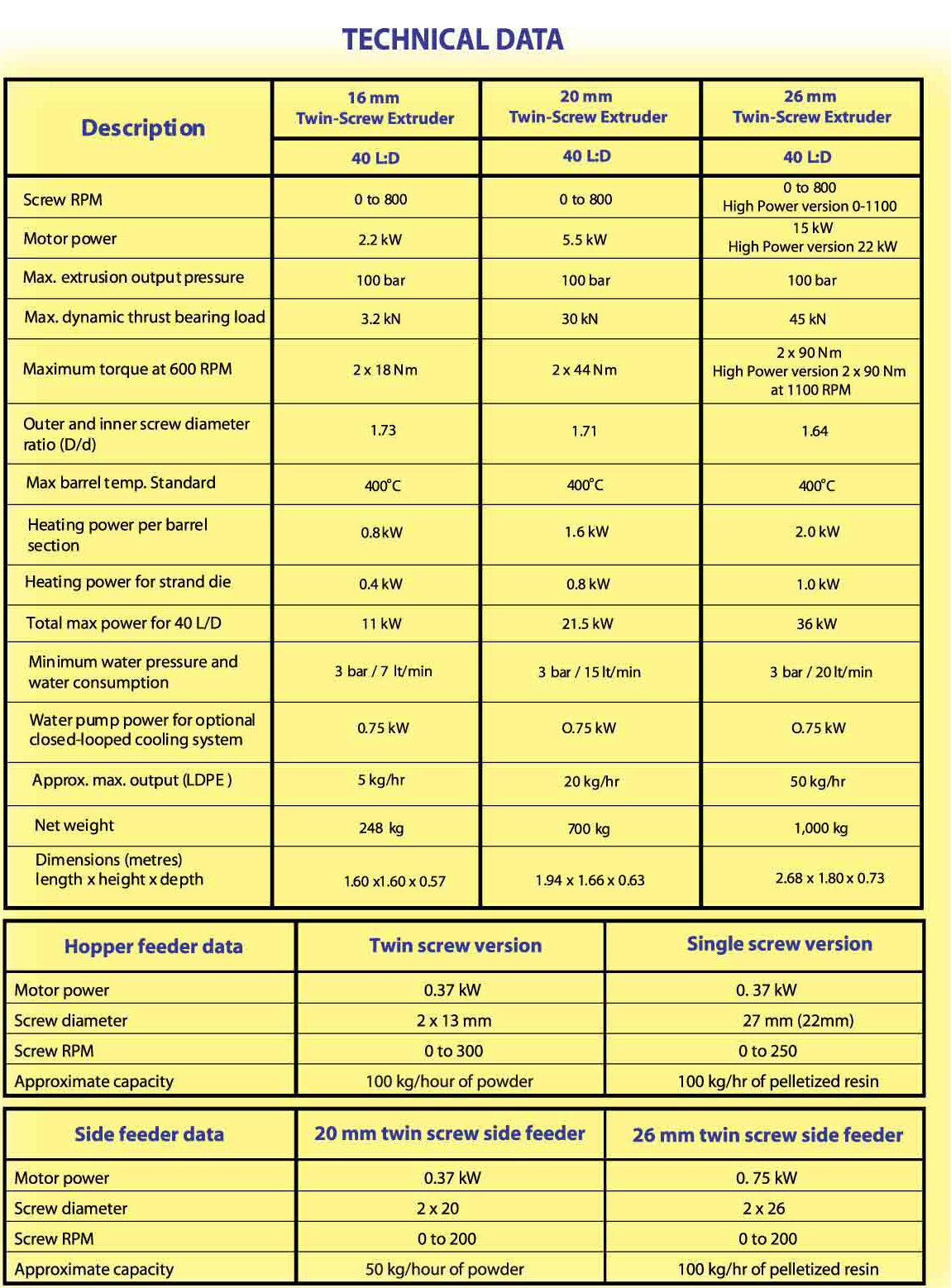

26mm Twin Screw Specs and Layout Drawing
16mm Twin Screw Extruder

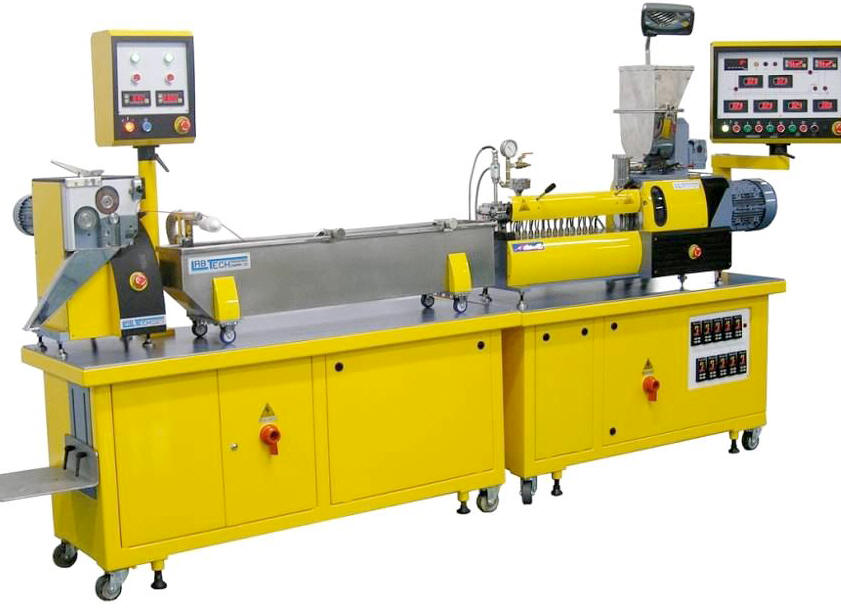

16mm twin screw extruder with water bath and standard pelletizer, equipped with agitated screw feeder and analog controls.
This extruder is EXCELLENT for small batches. Only 15 grams of material is maintained in the barrel. If you are running a 100 gram batch, you would get 85 grams of extruded material.
Click here to see
VIDEO of line running at the show.
20mm 40:1 L/D Twin Screw extruder with melt pump and LBCR - 150 Chill Roll Cast Line:
Compound and produce cast film for Biodegradable resin and special materials cast film product development. Line equipped with side feeder and liquid metering pump and vent section.
Request a quote on this line - Click Here!
Optional Twin Screw Extruder Side Feeders

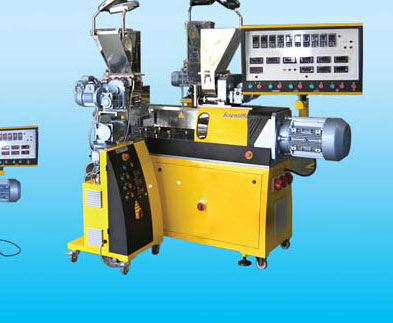

26mm Twin Screw Extruder with (2) optional side two stage agitated metering feeders with lower extruder screw side feeders and main metering feeder for compounding. Loss in Weight Gravimetric feeders are also available.
Request a quote on this line - Click Here!
